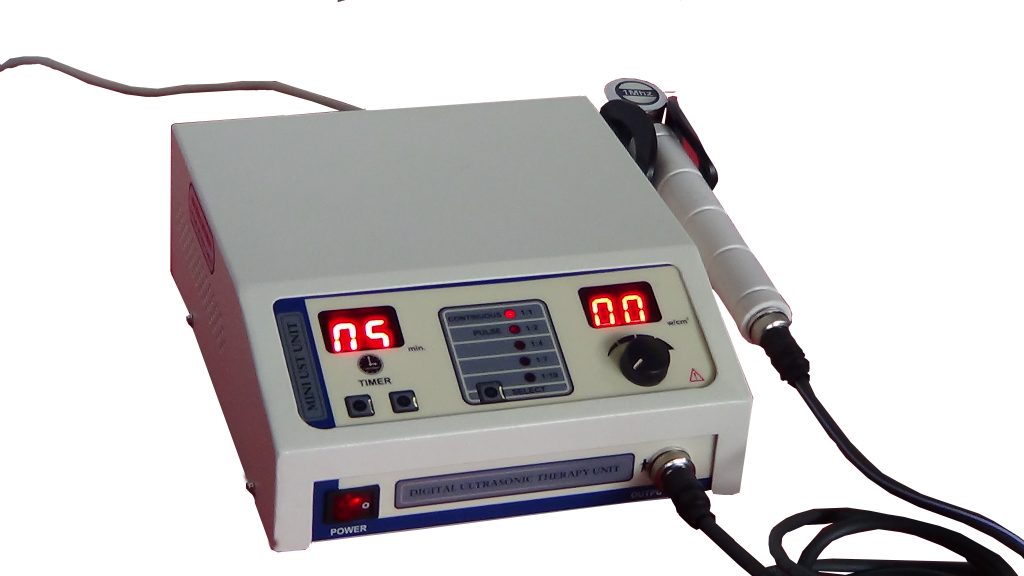

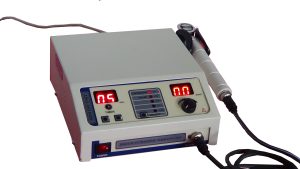

Dual Frequency-1Mhz & 3Mhz, Solid State micro-processor-based Ultrasound Therapy Unit, with Continuous and Pulsed modes. 1MHz is used for deeper penetration and 3MHz is used for superficial treatments.
SPECIFICATION:
* Ultrasound Frequency: Two, 1MHz & 3MHz
* Output Mode: Continuous & Pulsed.
* Variable Pulsed Frequency: 16Hz, 48Hz, 99Hz.
* Intensity: Continuous Mode: 0 to 2 watts/cm sq.
: Pulsed Mode: 0 to 3 watts/cm sq.
* Pulse Durations:
: 1:1 – 2 msec ON, 2 msec OFF
: 1:4 – 2 msec ON, 8 msec OFF
: 1:7 – 2 msec ON, 14 msec OFF
: 1:10- 2 msec ON, 20 msec OFF
* Treatment Heads: Two. separate Transducers for 1 MHz & 3 MHz.
* Effective Area of Radiation: 5cm. sq. centimetres.
* Programme: 24, Pre-set Programmes.
* Treatment Timer: 01 to 60 minutes.
* Audio- Alarm at the end of treatment with Auto Cut-Off.
* Power Required: 220V.AC, 50 Hz,
* ACCESSORIES: Ultra-sound Gel: One Pack.
