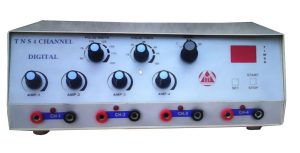

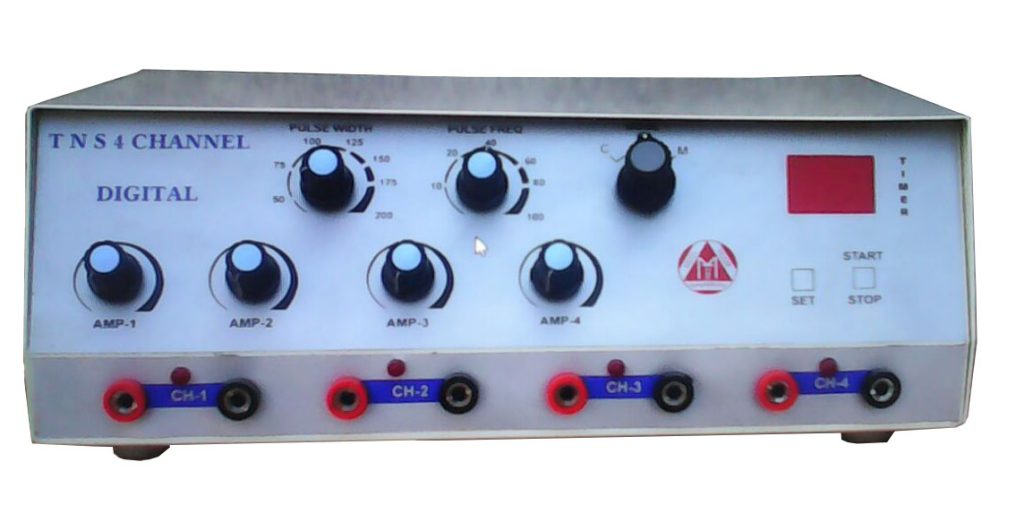

TENS-4 is an advanced microprocessor based, portable, table model electro-therapy unit. The unit with Four channels can be operated on different patients at a time or can be operated at Four locations to a patient. Wide range of Pulse Width variations, along with frequency & intensity variability, offers great flexibility in treatment of Chronic Pain Syndromes. “TENS” is used externally for the relief of localized pain.
SPECIFICATIONS:
* Out-Put Channels: 4 (Four).
* Frequency: Variable from 01-200 Hz.
* Pulse Width: Adjustable from 75 to 360 micro seconds in steps.
* Output Waveform: Symmetric. (Rectangle-Shaped Pulses).
* Output Voltage: 0 to 100 V. (Peak to Peak).
* Output Current: 0 to 60 mA.
* Treatment Time: Digital timer 5, 10, 15, and 20 minutes in steps.
* Display: LCD displays the parameters set-Treatment Time, and the current in the output for each channel.
* Power Consumption: 5watts.
* Accessories: Carbon Electrodes, Jelly & Tape.
