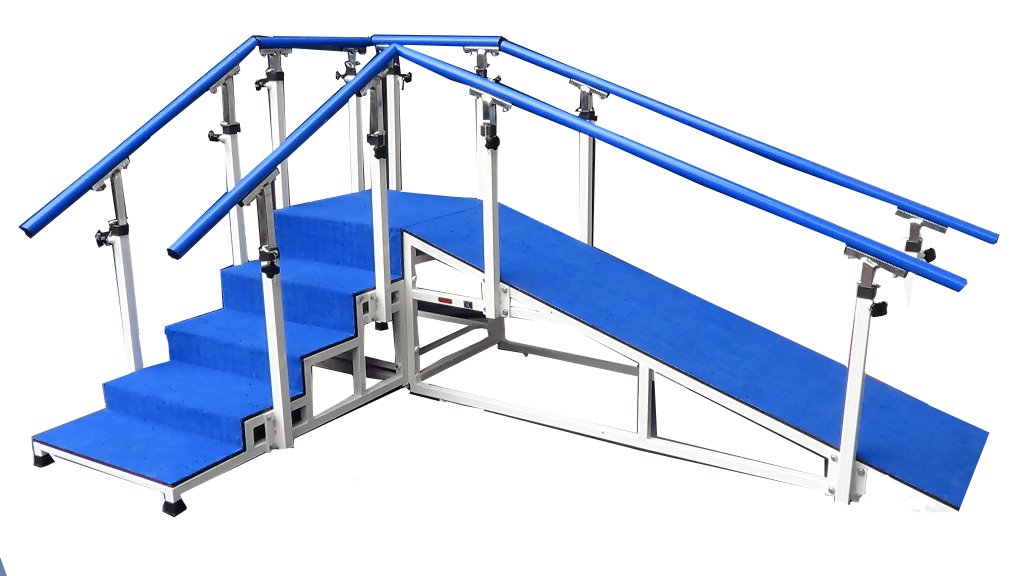

“Training Staircase with Ramp is built in Two Sections to assemble in Right Angle and to fit into a corner.
Specifications;
* Construction: Sides & Supporting Frame of steps is made of Tubular Pipe (30mm square) with reinforcement.
* Step Arrangement:
: Side-1; Five steps i.e. 7.5cm, 10cm, 12.5cm, 15cm and again 15cm in height and 25cm deep, leading to platform of 60cm x 60cm.
: Steps are 60cm wide & 25cm deep.
: Side-2; Other section has a Ramp, rising from 2.5cm to 60cm. & leading to the central platform.
* Steps, Ramp and Platform is made of commercial board of 12 mm thickness and is covered with non-slip matting.
* Hand Rails: Height adjusting Arms are made of Chrome-Plated square steel tubing of 30mm x 30mm.
: Outer uprights are of square steel tubeing of 35mm x 35mm.
: Hand-Rails are made of P.V.C.sheathed iron tubing of ”
“35mm dia.
: Inside Width of Hand-rails 60cm.
: Height of Handrails are adjustable from 60cm to 90cm to accommodate Adult and Children.
* Height Adjustment of Handrails can easily be done by means of setting Pins at the required holes & can further be stabilised by tightening the screws.
* Finish : Working Parts are Chrome-Plated and Uprights & Base with powder coated finish.”
