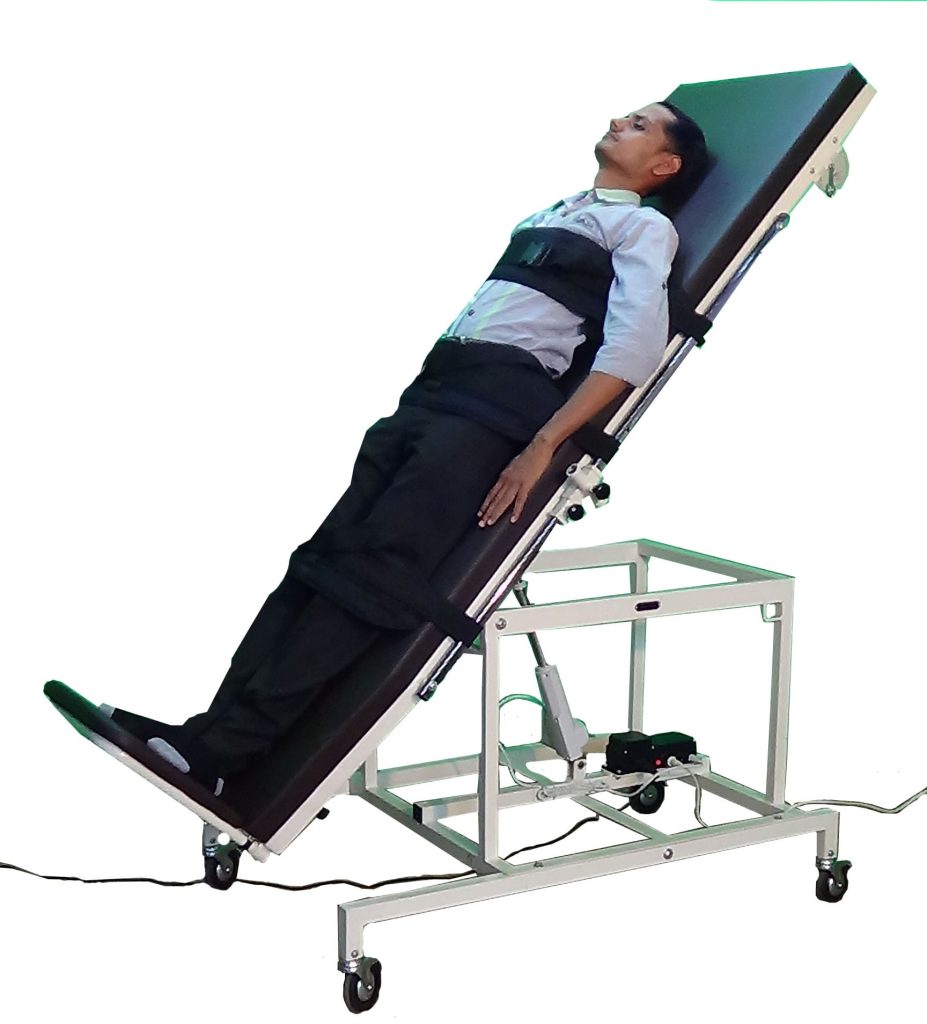

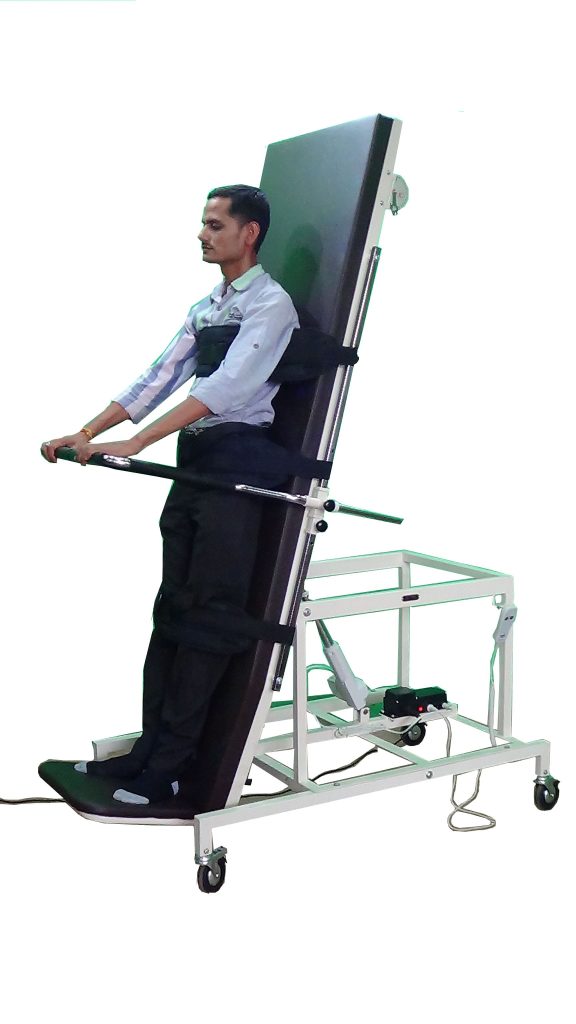

Manually Operated Tilt Table with foam padded upholstery, works to standing position manually with easy to turn worm gear arrangement that locks it at any required angle.
SPECIFICATIONS:
* Table Top: 198cm long x 61cm wide x 82cm high.
: Tilts on Two heavy duty Bush Bearings.
: Fitted with Tilt angle indicator.
: Top Fitted with 35mm thick foam padded upholstery.
: Fitted with Three, wide straps to hold patient.
* Range of Tilt: Adjustable from 00 to 90 degree.
* Worm-Gear: Sealed Heavy duty system fitted with Four Ball-Bearings and well Lubricated for life time performance, Works with removable handle.
* Base Frame: Welded frame is 75cm wide for more stability.
: Made of Rectangular (25mm x 50mm) & 30mm square steel Tubes.
: Legs fitted with 10cm dia. Lockable Castors for mobility.
* Foot-Board: Foam Padded removable Footboard for easy Entry & Exit.
* Finish: Powder coated finish in light cream Colour.
* Weight capacity: Maximum patient weight 120kg.
