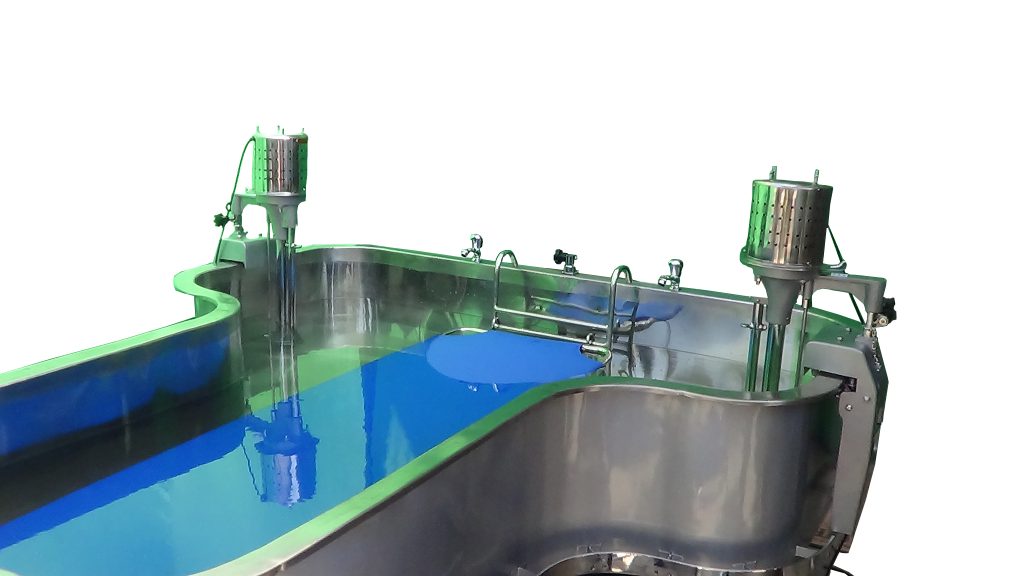

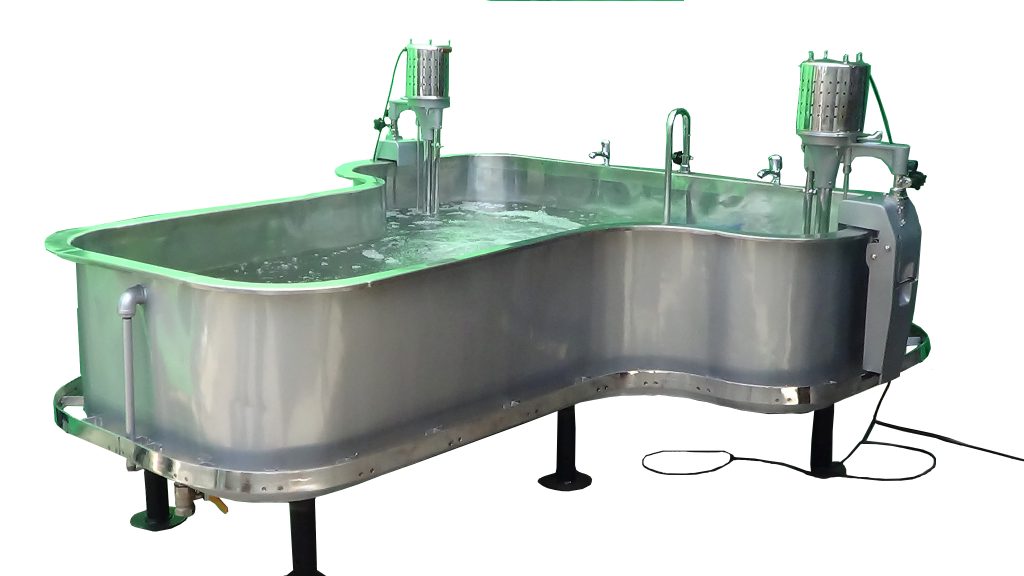

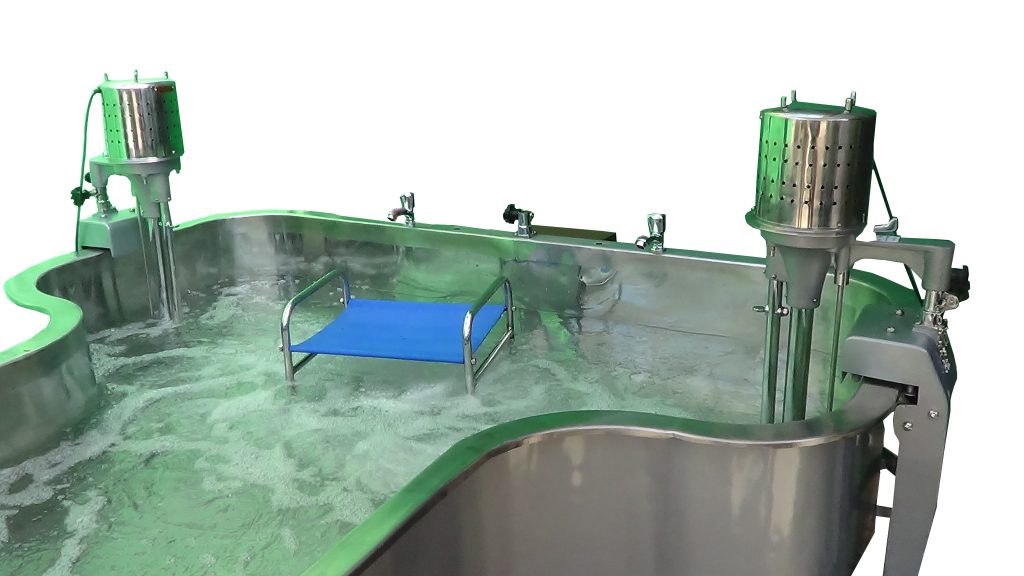

“T” Shaped, Hydrotherapy Bath Pool for Aquatic Therapy, is designed for permanent installations with direct connections to Hot & Cold water supply, Overflow, and Drainage.
SPECIFICATIONS:
*Construction: Constructed of heavy stainless steel sheet (2mm & 1.5mm thick), electrically Argon welded tank is shaped to “T” modified figure.
*Overall dimension: 200cm x 185cm x 80cm high.
*Inside dimension: Length 185cm. Width upper part 170cm. Width of lower part 90cm. Depth is 50cm.
*Turbine: Two, Turbine Ejector-Aerator are powered by the vertically mounted 1/2 hp electric motor & mounted on a spring-loaded turbine elevator for height adjustment.
*Turbine Carriages: Two carriages fitted with ball bearings for easy movement of Turbines around the tank.
*The heavy gauge stainless steel tank rests on a 30cm high tubular stand re-enforced with crossbars.
*Power Supply: 220 V AC.
*Accessories: One digital thermometer, 2 water inlets, drain and overflow pipes with fitting.
-Adjustable Stainless Steel Head-Rest,
-Stainless Steel Body Stretcher and Sitting seat fitted with nylon cloth.
*Finish: Bright polish finish inside the tank with special paint finish from outside.
Note: A separate room or hall is required for this unit with a 220V AC power supply, Hot & Cold-water supply, and water drainage.
