Treatment Furniture

UN-WEIGH MOBILITY TRAINER (Un-Weighing System, W/o. Treadmill)

“Un-Weighing Mobility Trainer enables partial weight-bearing therapy to be conducted with the assurance of patient Comfort and Safety, and with convenient access to the patient for manual observation and assistance.
The electrical un-weighing trainer is designed to apply vertical support to remove the stress of bearing body weight.
”

“The unit digitally controls weight-bearing and promotes proper posture and balance over a treadmill or the ground.
The system allows the patient to stand upright and use both arms freely.
The system Harnesses give security to patients with limited trunk strength.
The adjustable suspension bar adjusts to accommodate tall Children & Adults.
SPECIFICATIONS:
* Un-weighing: Can be set 0% to 100% of the body weight, digitally.
* Un-weighing System: Electrical, the unit comes with mains operated built-in lift system.
* Vertical Oscillation: Up to 24″” (60cm), ideal for sit to stand exercises also.
* Suspension: Single point, with the 360-degree rotational bar to help patients turn easily.
* Control Panel: Digitally display Patient weight, & Un-weighing Weight.
* Capacity: 0-120 kg un-weighing range.
* Un-Weighing Harness: Two, Small and Standard size.
* Handrails: For patient’s support, Adjustable & Removable.
* Therapist Seat; Removeable Seat for Therapist to sit during assistive exercises.
* Frame measures: 42″” Long x 33″” wide inside to accommodate Treadmill & fitted with four, 6″” lockable wheels.
* Power Supply: Unit Operates on 220V AC, with a battery backup system.
* Note: Assembled working size of unit; Height 92″” x Width 39″” x Length 43″” approx.”

Treatment Furniture

UN-WEIGH MOBILITY TRAINER (Un-Weighing System, with Treadmill)

“The Un-weighing Trainer enables partial weight-bearing therapy to be conducted with the assurance of patient Comfort and Safety, with convenient access to the patient for manual observation and assistance. The electrical un-weighing trainer is designed to apply vertical support to remove the stress of bearing body weight; unit digitally controls weight bearing, and promotes proper posture and balance over a treadmill or the ground. The system allows patient to stand upright and use both arms freely. Harnesses give security to patients with limited trunk strength. The adjustable suspension bar adjusts to accommodate tall Children & Adults.
SPECIFICATIONS:
* Un-weighing: Can be set 0% to 100% of the body weight, digitally.
* Un-weighing System: Electrical, the unit comes with mains operated built in lift.
* Vertical Oscillation: Up to 24″”, ideal for sit to stand exercises also.
* Suspension: Single point, with 360 degree rotational bar to help patient turn easily.
”

“* Control Panel: Digitally displays Patient Body Weight and Un-weighing Weight.
* Capacity: 0-120 kg un-weighing range.
* Un-Weighing Harness: Two, Small and Standard size.
* Handrails: For patient’s support, Adjustable & Removable.
* Frame measures: 42″”L x 33″” wide inside & fitted with Four, 6″” lockable wheels.
* Power Supply: Unit Operates on 220V AC, with battery back-up system.
TREADMILL, PROFESSIONAL MOTORISED:
Pro-Treadmill comes with 3CHP motor, Grip handles & hand touch pulse readout. It has a large running area/surface with shock dissipation system, emergency stop button with Power Incline.
SPECIFICATION:
* Motor: 3CHP (6-HP Peak) AC motor with controller.
* Speed: 01 to 22km/hr.
* Incline Range: Power Incline, 0 – 12%.
* Walking Surface: 22″” x 60″”.
* Red Out (Display): 10 Pre-set, 1 Manual, 2 custom programs,
: 3 LED & 1 Matrix window display with 1 HRC, Incline, Time, Distance, Pulse, Calories, with instant keys.
* User Weight: 350lbs / 160 kg.
* Roller: 76mm. dia.
* Additional Features: Instant Speed (+/-) & Incline (+/-) buttons, 6 point elastic cushions, & Wheel for transportation.
* Maintenance: Lubricated bed/ belt combination.
* Construction: Heavy stable frame with patented frame cushion system for stability
* Safety: A safety key shuts down in emergency.”

Exercise Equipment

HEEL EXERCISER (Spring Loaded)

“Specially designed unit for exercising the heel & tarsus muscle groups and patient can exercise while sitting on chair.
Specification;
* Foot-Holder: Aluminum body foot-holder, size 27cm long x 09cm wide with powder coated finish comes with two straps to hold the foot.
* Base; Unit is fitted on a laminated wooden base, size 66cm long x 15cm wide.
* Resistance; System is loaded with a heavy spring for heel/foot exercises.
* The resistance can be increased or decreased by shifting the foot holder up or down on the numbered lever ”

“arm.
* The pressing lever shaft is marked and fitted with a marker to measure and record the improvement.
* Finish; Powder coated with chrome plated working parts.”

Exercise Equipment

ANKLE EXERCISER for Dorsi & Planter Exercises (Spring Loaded)

Ankle Exerciser for Dorsi flexion and Plantar flexion exercises and patient can exercise while sitting on chair..
Specification;
* Construction; Painted Foot-Hold with straps to hold the foot is mounted on a Stainless steel sheet bracket (14g thick S.S.Sheet).
* Resistance; System is fitted with two springs on both ends for Ankle exercises.
* Resistance can be increased further by tightening spring’s nut.
* Degree of flexion can be measured and recorded from either side.
* Base; System is mounted on a laminated wooden base.

Exercise Equipment

QUADRICEPS EXERCISE TABLE with Adjustable Backrest & 6kg Weights

Nirmal-Quadriceps Table with One Torque unit is designed with a Backrest for the effective administration of progressive resistance exercises to the Knee joints muscle groups. Both QUADRICEPS & HAMSTRINGS can be exercised without changing the position of the patient. Also useful for Shoulder and Elbow exercises.
SPECIFICATIONS:
* Torque Unit: ONE set, (for Left OR Right Leg). Resistance Arms is calibrated so that resistance can be varied from Minimum, 1/2, 3/4 & Maximum without adding weights, the unit consists two lever arms, one of which hold the Weights while the other arm with shin foam roller provides contact with the patient’s leg.
* Goniometry: A degree scale is provided on the torque unit to measure and record the range of motion from either Direction.
* Seat & Armrests: Fixed height, Foam padded Seat is fitted with adjustable Arm-rests.
* Backrest: Foam padded back can be positioned from vertically to horizontally for more exercise options.
* Stabilizing Straps: Provided with torso & thigh straps for patient safety.
* Resistance: By changing angle between the two arms, maximum or minimum resistance can be given without adding Weight.
* Weight Plates: 2 of 0.5kg each, & 5 of 1kg each. Total weight 06 kgs.
* Size: 70cm x 80cm x 135cm high.
* Finish: Frame, with Powder coated finished.
:Torque Unit & working parts with Chrome plated finish.

Treatment Furniture

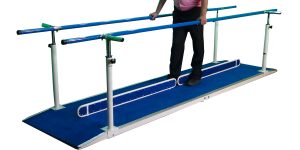

PARALLEL WALKING BARS (Adult) Height & Width Adjustable (Length3.60 Mtr./12Ft.)

All Manual-Adjusting Parallel Bars are mounted on strong tubular steel platform with inclination on both ends & covered with non-slip matting.
TECHNICAL SPECIFICATIONS:
* Hand-Rails are made of P.V.C. sheathed heavy-gauge iron tubing of 38mm dia.
* Outer uprights of thick steel tubeing (50mm dia) with Powder coating finish.
* Height & Width adjusting Arms are of 38mm dia. steel tubing with chrome-plated finish.
* Platform: Tubular steel constructed platform with incline on both ends & is covered with non-slip matting.
* Length: 3.60 meters (about 12 feet).
* Height: Adjustable from 75cm to 100cm.
* Width: Adjustable from 40cm to 65cm.
* Adjustments: Can easily be done by means of setting Pins at the required holes & can further be stabilised by tightening the screws.
* Abduction Board: Detachable, Powder coated Abduction Board fits in the holes in the middle of the platform.
* Finish: Working Parts with Chrome-Plated finish & metal parts with powder coated finish.

Treatment Furniture

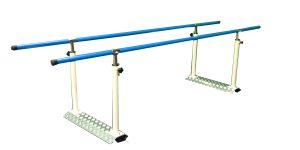

PARALLEL WALKING BARS, Adult, W/o. Plateform (Length 3 Mtr.)

“All Manual-Adjusting Parallel Bars without plateform for gait training.
Technical Specifications:
* Hand-Rails are made of P.V.C. sheathed heavy-gauge iron ”

“tubing of 38mm dia.
* Height adjusting Arms are made of Chrome-Plated steel tubing of 38mm dia.
* Outer uprights of thick steel tubeing (50mm dia) with Powder coating finish.
* Length: 3 Meters (about 10 Feet) with Hand-Rails made of P.V.C.sheathed iron tubing.
* Width: Inside fixed width of hand-rails 60cm.
* Height: Adjustable from 76cm to 100cm.
* Height Adjustments: Can easily be done by means of setting Pins at the required holes & can further be stabilised by tightening the screws.
* Base: Uprights are mounted on Two, 20cm wide, non-slip bases with reinforcement.
* Uprights & Bases have powder coated finish.
* Finish: Working Parts are Chrome-Plated.”

Exercise Equipment

CYCLE ERGOCISER, SEMI-RECUMBENT with Back-Support

The Adjustable, Semi-Recumbent Cycle Ergociser provides a Biomechanical SEAT for Patients requiring Back Support & Reduced Gluteal Pressure.
* The Bike with Non-Friction Magnetic Resistance system provides smoothness, durability, and runs virtually silent.
FEATURES:
* Frame: Heavy gauge pipe sturdy frame with heavy fly wheel.
* Resistance Type: Non-friction, Magnetic resistance.
* Resistance Level: 8 levels of resistance system.
* Display: Dual colour combined display time, distance, speed, calorie, pulse, perpetual calendar and clock.
* Programs: 12 programs with recovery including manual, body fat, hrc, rpm, user setting and watt program.
* Seat & Back: Completely adjustable, comfortable seat & back offers easy access and comfort that complies with ergonomics.
* Back-Support: High Back support to reduce gluteal pressure.
* Finish: Powder coated finish.

Exercise Equipment

CYCLE ERGOMETER, UPRIGHT (with Back Support & Magnetic Resistance)

Magnetic Resistance, heavy-duty Upright Bike with Back Support, is designed for heavy use, low maintenance, smooth pedaling & comfortable riding.
* Frame: Torsion-free Steel frame construction withstands the rigors of a clinical environment.
* Non-motorized Upright exercise cycle with Back-Support.
* Belt Driven with 08 level Manual tension control system.
* Step through frame for easy access.
* 6 kg of rotating mass ensures smooth and dynamic movement.
* Ergonomic adjustable-reach arms with padded grips.
* Steel frame construction with Powder coated finish.
* Easy to adjust the Seat and Handle position.
* Electronic meter displays time, distance, calories burned, speed and scan.

Exercise Equipment

PED-O-CYCLE with Resistance Control (Bi-Directional)

“Ped-O-Cycle for reactivation and mobilization of the joints and for strengthening the leg muscles. Suitable for patient unable to sit on a regular exercise bicycle.
Specification:
* Construction: Tubular steel construction with 20cm dia Flywheel fitted on heavy ball-bearings.
”

“* Resistance: Fitted with Calibrated Resistance control device. and Resistance is adjustable from Zero to Maximum with nylon strap.
* Pedal Movement: Pedalling movement can be carried out in Forward or Reverse direction.
* Foot-Hold: Pedals are fitted with Foot-Hold Straps.
* Finish: Powder Coated finish.”

Exercise Equipment

ACTIVATOR, Bi-Directional, with Resistance Control (Without Chair)

A unique exerciser for the lower and upper extremities.
* The pedalling movement can be carried out by either Arms or Legs.
* It can be fixed and adjusted in matter of seconds to limb size and to the degree of flexion or extension.
* Chrome-plated unit with adjustable resistance is very light and easily portable and can be attached to any tubular chair.

Exercise Equipment

ROWING MACHINE cum SLIDING SEAT

Rowing uses virtually every major muscle group in your body. Rowers work their legs, hips and buttocks with each movement. They also use upper-body muscles, strengthening the back, shoulders and arms.
Specifications:
* Upper Frame: Bright Chrome plated tubular steel frame of 22 mm diameter tube, size 60″long x 13″wide.
* Base: Upper frame is fitted on an Angle iron steel base with powder coated finish.
* Seat; Specifically designed foam padded seat is fitted with FOUR nylon wheels that slides smoothly over the frame.
* Seat is fitted with movement guiders to avoid slippage of Seat.
* Unit comes with FIVE Springs of different tensions.
: Two high tension springs attached to the seat for resistive leg exercises.
: Three light tension springs are fitted with Rope & Two Handles for resistive Arm and Shoulder exercises.
* Resistance can be varied by removing or adding the springs.

Exercise Equipment

STATIC CYCLE EXERCISER (Power-Gym)

Static Cycle Exerciser, with ruggedly built tubular steel frame, stands solidly on properly balanced base with powder coated finish. Resistance system provides smoothness, durability, and runs virtually silent.
FEATURES:
* Frame-work: Heavy gauge pipe frame with one hard rubber-tired wheel, standard chain & sprocket for bicycle drive.
* Seat & Handle: Height is adjustable as required for the patient comfort.
* Paddles: Paddles are fitted with Foot supporting straps.
* Resistance: Resistance knob with ball-bearing roller permits controlled variation in ridding efforts.
* Display: Odometer shows Speed & Kilometre done.
* Finish: Frame with powder coated finish, working parts finished with chrome plating.
* Load Capacity: Approx. 100kg.

Exercise Equipment

STATIC CYCLE EXERCISER (Adult)

Ruggedly built tubular steel frame stands solidly on four rubber tipped properly balanced legs.
* Provided with adjustable standard cycle seat and specially designed adjustable handle.
* Fitted with one hard rubber tired wheel and standard chain and sprocket for bicycle drive.
* Comes with chrome plated wing nut, pressure rod and ball bearing Resistance roller which permits controlled variation in ridding effort.
* Odometer shows speed and kilometer done.
* Powder Coated finish with working parts finish with chrome plating.
* Manufactured as per ISI standard.

Exercise Equipment

STATIC CYCLE EXERCISER (Junior For Age Group 8-14 Years)

“Ruggedly built tubular steel frame stands solidly on four rubber tipped properly balanced legs. Suitable for 8 to 14 years age group.
* Provided with adjustable standard cycle seat and specially designed adjustable handle.
* Fitted with one hard rubber tired wheel and standard chain and sprocket for bicycle drive.
* Comes with chrome plated wing nut, pressure rod and ball bearing Resistance roller which permits controlled ”

“variation in ridding effort.
* Odometer shows speed and kilometer done.
* Powder Coated finish with working parts finish with chrome plating.
* Manufactured as per ISI standard.”

Exercise Equipment

HAND SKATE ROLLER

Hand Skate Roller is suitable for Hand, Arm and Shoulder exercises.
* Hand Skate is steel channel’s fabricated with Powder coated finish.
* Skate is fitted with free movement wheels.
* Skate has a Gripping handle for exercising on the exercise Board or Table.

Exercise Equipment

LEG SKATE ROLLER

A great lower body exercise, working muscles in your calves, quads, and glutes.
* Powder coated, steel rod fabricated skate, fitted with three free movement casters.
* Painted Foot-Hold with straps to hold the foot at desired angle.
* Can be used on the exercise board or floor.

Exercise Equipment

THERAPY PUTTY with Different Resistances

Putty is Bleed proof, nontoxic, clean & non-oily, putty
“leaves no color or residue on patient’s hand & it won’t fragment, separate or stick to skin. It is designed to meet a wide range of Hand / Arm strengthening needs.
* Putty can be Squeezed, Twisted, Stretched or Pinched.
* Therapy Putty Set of Two Packs in two different resistances, each pack of 100gms.”

Exercise Equipment

RESISTIVE EXERCISE BANDS SET (Stretch-It, 1.7 Mtr. x 5 Resistances)

A Set of Five Resistive exercise bands offers a resistive treatment and exercise system with unlimited options.
* Each Roll of 15cm wide x 1.7m long band, you can design exercise programs to suit’s patient’s specific needs.
* Full Set comes in following Five Resistances.
A, Medium-Light, Red: (1.7m).
B, Medium-Heavy, Green: (1.7m).
C, Heavy, Blue: (1.7m).
D, Extra-Heavy, Purple.: (1.7m).
E, Special-Heavy, Silver.: (1.7m).
