Category: Physiotherapy Equipments

C.P.Chair is useful for the child who cannot sit up on his own, and who needs his back, shoulders and upper trunk supported, This allows the child to be independent, with hands free for play, while maintaining optimal erect trunk alignment.
* Construction; Hardwood & ply board constructed, naturally finished.
* Incline; Chair reclines through an arc and can be adjusted to any desired position.
* Head-Rest; Height adjustable foam padded Headrest which can be formed & reformed as needed.
* Back; High back support holds the child with wide belt.
* Activated Tray; Laminated Tray size 21″ x 24″ with polished wooden raised edges, holds the items from falling.
* Adjustable Seat & Footboard are 12″ wide and suits the small children.
* Mounted on 5cm dia. ball bearing castors.
* Finish; Natural wood-polish finish with chrome-plated working parts

“Floor sitter is useful for the child who cannot sit up on his own, and who needs his shoulders and upper trunk supported, these Floor Sitters offer support in seating a child at floor level.
* This allows the child to be independent, with hands free for play, while maintaining optimal erect trunk alignment.
* Construction:
* Wooden Corner Seat, with broad Base (45cm x 45cm) that helps to prevent tipping.
* Backrest; 52cm high, Three-panel Backrest guides your child into a central position.
* Backrest; All Three Back Panels are Foam Padded & adjustable in Height (10cm) for tall children.
* Seat: Foam Padded, 37cm x 37cm square.
* Abductor Block: Foam padded Abductor block fitted with ”

“Seat.
* Lap Board/Tray: Sitter comes with removable Lap Tray with stand.
* Accessories: Hip positioning belt & removable Tray are an integral part of the floor sitter.
* Finish: Unit finished in natural wood polish. Seat & Back is covered with multi-colour Rexene.”

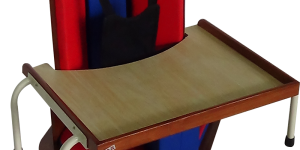

“C.P. Rehabilitation Chair with Activity Tray is designed with inclinable foam padded Seat & Back & fitted with adjustable Head Support for children who have significant locomotor deficits. The Chair is most suitable for comfortable positioning of the children with special needs.
SPECIFICATIONS:
* Frame: HDF Board Frame with enamel finish.
* Seat-Tilt: Seat Tilt is adjustable up to 10degrees with ”

“Hand levers.
* Seat Width: Inside 35cm wide with Foam Padded Seat for the comfort of the child.
* Backrest Recline: Adjustable Recline up to 30 degrees for comfortable back support. Useful for the children, who have the tendency to bend forward.
* Headrest: Foam Padded & Adjustable in Height
* Footrest: Detachable & Adjustable in height. Fitted with Feet Stabilizing Straps & Leg support Belt.
* Activity Tray: Removeable Laminated tray.
* Wheels: Chair is mounted on four 05cm dia. Casters with brakes.
* Safety: Back is fitted with Chest-Straps to support & Hold the child.
* Finish: Metal parts have a powder-coated finish.”

Basic Adult Standing Frame comfortably supports weight- bearing parts of the body. Helps prevent atrophy of leg muscles, improves range of motion, helps improve circulation, lessens muscle spasms and contractions
* Frame: Stander is made of Tubular Frame and is fitted with a laminated actvity tray.
* Body Support: Three wrap around straps with Velcro are provided for heel, knee and pelvic support.
* Chest Support: Adjustable Foam padded Chest-support is provided to avoid forward bending.
* Dimentions: Base size 38″ x 26″.
* Frame Height 40″ fixed.
* ActivityTray; Size; 27″ wide x 12″ deep.
* Assembly required at destination.
* Finish; Powder Coated finish.

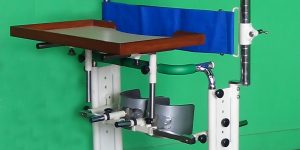

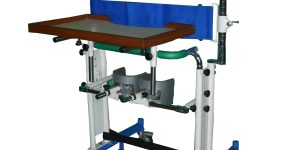

“Height adjustable Standing frame is used for passive upright position. The Vertical Stander with four points of support provides the therapeutic benefits of standing and places adult at peer level.
Specifications;
* Construction: Vertical Poles are fitted on a heavy base with Foot divider & non-slip matting.
* Ankle Support: Ankle Supports are adjustable in Length & Width & fitted with ankle Straps.
* Knee Support: Padded knee Supports are adjustable in Height & Width.
* Pelvic & Chest Supports: Pelvic belt & Chest belt are Height Adjustable for proper fit.
* Mounting: The Stander is fitted with Four lockable Castors to enable relocation of the patient in standing position in the device within hospital or flat.
* Activity Tray: Detachable Wooden Activity Tray is adjustable in Height & Depth & most suitable for eating meals, having fun & learning in standing position.
* Finish: Metal parts with Powder coated finish, Vertical Poles are Chrome Plated finish.
* Assembly: The Vertcal uprights has fixing hardware ”

(Nuts & Bolts) to assemble at destination.

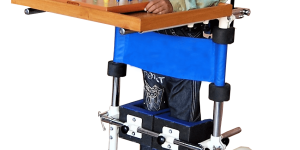

The durable, functional Vertical Stander with four points of support provides the therapeutic benefits of standing and places children at the peer level.
Specifications;
* Suitable for children, age group 08 to 15 years.
* Construction: Vertical Poles (107cm high) are fitted on a heavy wooden base with Foot divider.
* Base Size: 71cm x 71cm, fitted with non-slip matting.
* Ankle Support: Wooden Ankle Support is adjustable in Length & fitted with Ankle Straps.
* Knee Support: Padded knee Supports are adjustable in Height from 35cm (14″).
* Pelvic Support: Pelvic belt is Height Adjustable for proper fit.
* Chest Support: Padded Chest Support with Belt is adjustable in Height & Depth. (Maximum Height 122cm).
* Activity Tray: Detachable Wooden Activity Tray (Size 58cm x 44cm) is adjustable in Height & Depth & most suitable for eating meals, having fun & learning in standing position.
* Finish: Metal parts with Powder coated finish, Vertical Poles are Chrome Plated & Wooden parts with Natural polish finish.
* Assembly: The Vertcal uprights has fixing hardware (Nuts & Bolts) to assemble at destination.

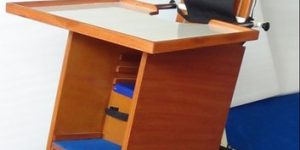

Individual patient, Kid’s Stand-in-Table, made of Teakwood & teak-ply with laminated top and natural polish finish.
* Stand-in-Table comes with padded back & knee support & leg divider.
* Top: Laminated top is 36″x 24″deep & has a rim all around to keep toys from falling;
* Standing box: 14″wide x 10″deep.
* Standing platform with leg divider is adjustable for height and has hinged door.
* Back-Support: A special back support is fitted to reduce the depth of the box.
* Construction. : Legs & Frame of Teak-wood.
* Finish.: Natural polished wood finish.

Exercise Staircase with tubular base is built in Two Sections at Right Angle to fit into a corner.
Specifications;
* Construction: Steps and Platform Made of the commercial board of 12 mm thickness are covered with non-slip matting. The sides and supporting frame of steps are made of a Tubular Pipe (30mm square) with reinforcement.
* Hand Rails: Height adjusting Arms are made of Chrome-Plated square steel tubing of 30mm x 30mm. Outer uprights are of square steel tubing of 35mm x 35mm.
: Hand-Rails are made of P.V.C. Sheathed iron tubing of 35mm dia.
: Inside Width of Hand-rails 75cm.
: Height of Handrails are adjustable from 60cm to 90cm to accommodate Adult and Children.
* Height Adjustment of Handrails can easily be done by means of setting Pins at the required holes & can further be stabilized by tightening the screws.
* Steps arrangement, Side-1: Four, 15cm high steps on one side leading to a platform of 75 cm x 75 cm.
* Steps arrangement, Side-2: Eight, 7.5 cm high steps on the other side leading to the platform.
* Steps: Steps are 75 cm wide & 25cm deep. Fitted with height-adjustable handrails.
* Finish: Working Parts are Chrome-Plated and Uprights & Base with powder-coated finish.

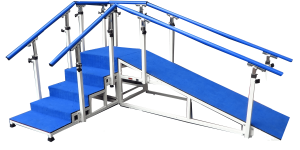

“Training Staircase with Ramp is built in Two Sections to assemble in Right Angle and to fit into a corner.
Specifications;
* Construction: Sides & Supporting Frame of steps is made of Tubular Pipe (30mm square) with reinforcement.
* Step Arrangement:
: Side-1; Five steps i.e. 7.5cm, 10cm, 12.5cm, 15cm and again 15cm in height and 25cm deep, leading to platform of 60cm x 60cm.
: Steps are 60cm wide & 25cm deep.
: Side-2; Other section has a Ramp, rising from 2.5cm to 60cm. & leading to the central platform.
* Steps, Ramp and Platform is made of commercial board of 12 mm thickness and is covered with non-slip matting.
* Hand Rails: Height adjusting Arms are made of Chrome-Plated square steel tubing of 30mm x 30mm.
: Outer uprights are of square steel tubeing of 35mm x 35mm.
: Hand-Rails are made of P.V.C.sheathed iron tubing of ”

“35mm dia.
: Inside Width of Hand-rails 60cm.
: Height of Handrails are adjustable from 60cm to 90cm to accommodate Adult and Children.
* Height Adjustment of Handrails can easily be done by means of setting Pins at the required holes & can further be stabilised by tightening the screws.
* Finish : Working Parts are Chrome-Plated and Uprights & Base with powder coated finish.”

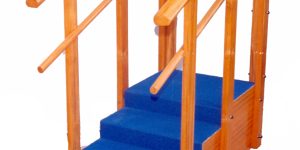

Training Stairs, sturdily built in one section for installation in a straight single side.
* Construction: Steps and Platform Made of the commercial board of 12mm thickness & are covered with non-slip matting.
* Sides and supporting frame of steps is made of Tubular Pipe (30mm square) with reinforcement.
* Hand Rails: Inside Width of Hand-rails 60cm.
: Hand-Rails are made of P.V.C.sheathed iron tubing of 35mm Dia.
: Height adjusting Arms are made of Chrome-Plated square steel tubing of 30mm x 30mm. Outer uprights are of square steel tubing of 35mm x 35mm.
: Height of Handrails are adjustable from 60cm to 90cm to accommodate Adult and Children.
* Height Adjustment of Handrails can easily be done by means of setting Pins at the required holes & can further be stabilized by tightening the screws.
* Steps arrangement, Four, 15cm high steps leading to a platform of 60cm x 50cm.
* Steps: Steps are 60cm wide & 25cm deep & covered with non-slip matting.
* Finish: Working Parts are Chrome-Plated and Uprights & Base with powder coated finish.
Note: Require assembly at destination.

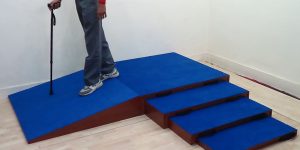

Ideal for ambulation therapy & mobility training.
SPECIFICATIONS;
* Construction: Ply-board with Hardwood constructed training set consists of ONE Ramp and THREE Nested Curbs stored below the Ramp.
* Ramp: Measures 212cm x 110cm. & Tapers in height from 20mm to 200mm.
* Curbs: Three. Measures
(1). 100 x 100 x 15cm high.
(2). 90 x 90 x 10cm high.
(3). 80 x 80 x 5cm high.
* Finish; Natural wood finish with anti-slip safety mats on ramp and curbs.

Nesting stools, or physical therapy steps, are independent steps which come in different height levels

“to form various elevation patterns used for improving balance training and body mechanics.
Set of Four Nesting Stools to encourage patient for stepping, crawling, and climbing activities for children and adults for rehabilitation, therapy, or training, and also for those with physical disabilities.
* Constructed of strong Ply-wood board, Top with Non-slip matting.
* Sizes are:
(1). 16″” x 20″” x 8″” High.
(2). 14″” x 18″” x 6″” High.
(3). 12″” x 14″” x 4″” High.
(4). 10″” x 12″” x 2″” High.
* Finish : Natural wood polish finish.”

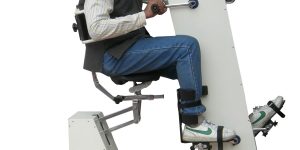

This unique Upper & Lower Extremity Cycle accommodate users with varying abilities. Based on German technology it allows the user to passively work their lower body while actively working their upper body or vice-versa.
Specifications:
* Construction: Heavy Steel Frame for exceptional stability & fitted with heavy-duty Ball-bearings for easy operation.
* Angle Adjustment: Working Angle of the Cycle can be adjusted from 45 to 85 degrees for the comfort of the patient.
* Seat: Padded Seat is adjustable in Height & Distance to accommodate small or tall adults.
* Back Support: Padded back support is adjustable in Height & Distance for the patient’s comfort.
* Resistance: A control knob adjusts resistance with a very low start-up load.
* Display: A fitness computer displays and monitors Time, Distance, Speed, and Calories.
* Foot Hold: Foot-hold Paddles with straps are provided to hold the foot.
* Accessories: Unit comes with One set of Hand holding

Manually Operated Tilt Table with foam padded upholstery, works to standing position manually with easy to turn worm gear arrangement that locks it at any required angle.
SPECIFICATIONS:
* Table Top: 198cm long x 61cm wide x 82cm high.
: Tilts on Two heavy duty Bush Bearings.
: Fitted with Tilt angle indicator.
: Top Fitted with 35mm thick foam padded upholstery.
: Fitted with Three, wide straps to hold patient.
* Range of Tilt: Adjustable from 00 to 90 degree.
* Worm-Gear: Sealed Heavy duty system fitted with Four Ball-Bearings and well Lubricated for life time performance, Works with removable handle.
* Base Frame: Welded frame is 75cm wide for more stability.
: Made of Rectangular (25mm x 50mm) & 30mm square steel Tubes.
: Legs fitted with 10cm dia. Lockable Castors for mobility.
* Foot-Board: Foam Padded removable Footboard for easy Entry & Exit.
* Finish: Powder coated finish in light cream Colour.
* Weight capacity: Maximum patient weight 120kg.

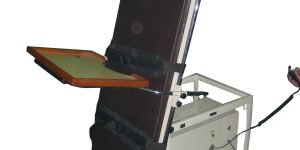

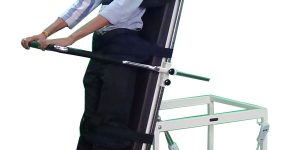

“Electrically Operated Tilt Table with A.D.L Activity Tray & foam padded upholstery, table works to standing position with heavy duty Actuator that provides silent and smooth Tilting action with hand-held push button control switches. Range of tilt is adjustable between 0 to 90 degrees. Works on 220V AC.
SPECIFICATIONS:
* Tilt System: Electrical operated Sealed Heavy duty system is well lubricated for life time performance,
* Range of Tilt: Adjustable from 0 to 90 degree.
* Tilt Angle: Horizontal to 90 degree vertical in 60 seconds. (1.5 degree per Second)
* Table Top: 198cm long x 61cm wide x 82cm high,
: Tilts on Two heavy duty Bush bearings
: Fitted with Tilt angle indicator.
: Fitted with 35mm thick foam padded upholstery.
: Fitted with Three, wide straps to hold patient.
* Base Frame: Welded frame is 75cm wide for more stability.
: Made of Rectangular (25mm x 50mm) & 30mm square steel Tubes.
: Legs fitted with 10cm dia. Lockable Castors for mobility.
* Foot-Board: Foam Padded removable Footboard for easy Entry & Exit.
* Utility Tray: Laminated surface for ADL activity.
* Arm Supports: Tubular frame to grip for support.
”

“* Finish: Powder coated finish in light cream Color.
* Weight capacity: Maximum patient weight 120kg, distributed evenly.
* Power: 220V. AC.”

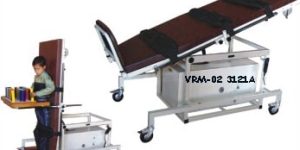

Child size electrically operated Tilt Table with A.D.L activity Tray & foam padded upholstery, table works to standing position with heavy duty Actuator that provides silent and smooth Tilting action with hand-held push button control switches.
SPECIFICATIONS:
* Tilt System: Electrical operated Sealed Heavy duty system is well lubricated for life time performance,
* Range of Tilt: Adjustable from 0 to 90 degree.
* Tilt Angle: Horizontal to 90 degree vertical in 60 seconds. (1.5 degree per Second)
* Table Top: 152cm long x 60cm wide x 60cm high,
: Tilts on Two heavy duty bushes.
: Fitted with Tilt angle indicator.
: Fitted with 35mm thick foam padded upholstery.
: Fitted with Three, wide straps to hold patient.
* Base Frame: Welded frame is 75cm wide for more stability.
: Made of Rectangular & 30mm square steel Tubes.
: Legs fitted with 10cm dia. Lockable Castors for mobility.
* Foot-Board: Foam Padded removable Footboard for easy Entry & Exit.
* Utility Tray: Laminated surface for ADL activity.
* Arm Supports: Tubular frame to grip for support.
* Finish: Powder coated finish in light cream Colour.
* Weight capacity: Maximum patient weight 60kg.
* Power: 220V. AC.

“Exercise Staircase with tubular base is built in Two Sections in Right Angle to fit into a corner.
Specifications;
* Construction: Sides and supporting frame of steps is made of Tubular Pipe (30mm square) with reinforcement.
> Steps and Platform Made of the commercial board of 12mm thickness are covered with non-slip matting.
* Hand Rails: Inside Width of Hand-rails 60cm.
> Hand-Rails are made of P.V.C.sheathed iron tubing of 35mm Dia.
> Height adjusting Arms are made of Chrome-Plated square steel tubing of 30mm x 30mm.
> Outer uprights are of square steel tubing of 35mm x 35mm.
> Height of Handrails are adjustable from 60cm to 90cm to accommodate Adult and Children.
* Height Adjustment of Handrails can easily be done by means of setting Pins at the required holes & can further be stabilized by tightening the screws.
* Steps arrangement, Side-1: Four 15cm high steps on one ”

“side leading to a platform of 60cm x 60cm.
* Steps arrangement, Side-2: Six, 10cm high steps on the other side.
* Steps: Steps are 60cm wide & 25cm deep & covered with non-slip matting.
* Finish: Working Parts are Chrome-Plated and Uprights & Base with powder coated finish.”

Best Indian mirror for bright and distortion-free images for the observation of posture by patients.
* Mirror: Size 150cm x 50cm, is protected by polished plyboard back.
* Mounting: Wall mountable Mirror with Two angle brackets & wall mounting hardware.
* Finish: Wooden frame with natural polish.

Best Indian mirror for bright and distortion-free images for the observation of posture by patients.
* Mirror: Size 150cm x 50cm, is protected by polished plyboard back.
* Mounting: Wall mountable Mirror with Two angle brackets & wall mounting hardware.
* Finish: Wooden frame with natural polish.

Best Indian Mirror on moveable stand, for postural training of the patient in Rehabilitation departments.
* Construction; Mirror Size 165cm x 45cm, is protected by 7cm wide hardwood polished frame with ply-wood back.
* Mirror Frame; Fitted with a tubular stand.and mounted on 4 ball-bearing rubber castors of 50mm dia.
* Approximate overall size with stand is 190cm high x 60cm wide x 60cm deep.
* Metal parts with powder coated finish.
